LASER CO₂ 1550
Description
Applications
Skin tightening / Wrinkle removal / Scars reduction
Advantages

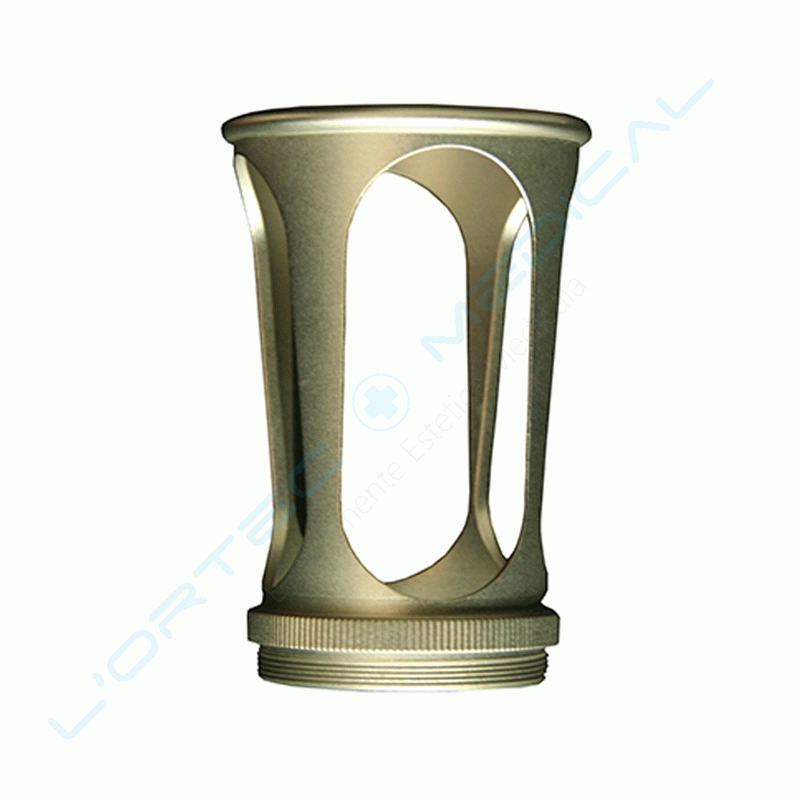

Up to 3 kinds of scanning tips;
Up to 4 fractional treatment modes, Dermis and Epidermis treatments are effective at the same time in composite mode;
5 default graphics for precise scanning with up to 10 levels of scan coverage;
World’s top 1550 fiber LASER, up to 30W energy output (20w/10w for Optional);
High precise scanning with top quality scanning system;
Up to 200mj single-point energy with 50±5um spot size;
Get a quick quote
Send us an email by entering your details and any comments you have in the form application.
![](images/icon1.png)
![](images/icon2.png)
![](images/icon3.png)
![](images/icon4.png)
![](images/icon5.png)
![](images/icon6.png)
Laser type (CW) Fiber laser
Laser wavelength 1550nm
Laser output power 30W/20W (Optional)
Beam mode TEM00 <1.1M2
Treatment mode Light mode/Mid mode/Deep mode/Fusion mode
Scanning diagram Round/Square/Rectangle/Triangle/Torus/DIY
Pulse energy Up to 200mj
Focused spot diameter 50~150um
Pulse delay 0ms-100ms
Stripping ratio 5%~95%
Aim light 635nm≤5mw
Scanning mode Random off/Random on
Rated input power AC230V±10%,6A 60/50Hz/AC110V±10%,60Hz;(Optional)
Net weight 45kg
Physical dimension 380mm*540mm*1230mm
