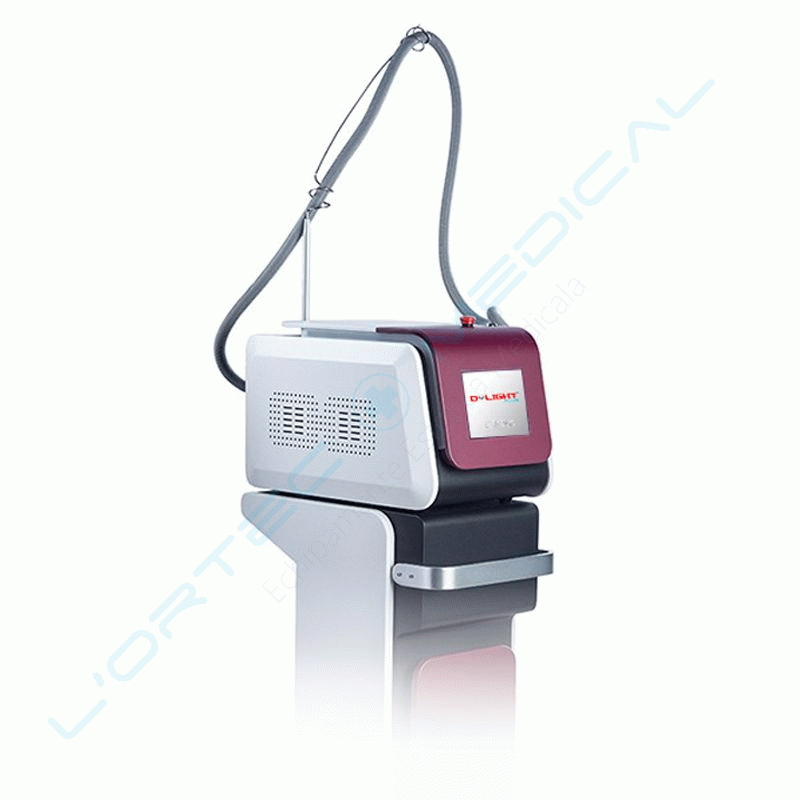

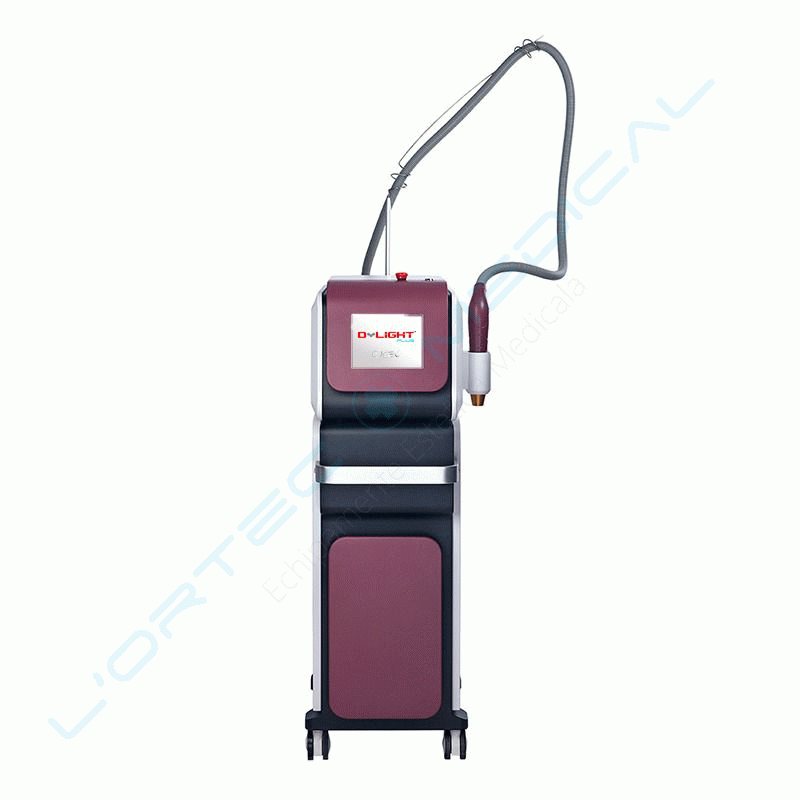

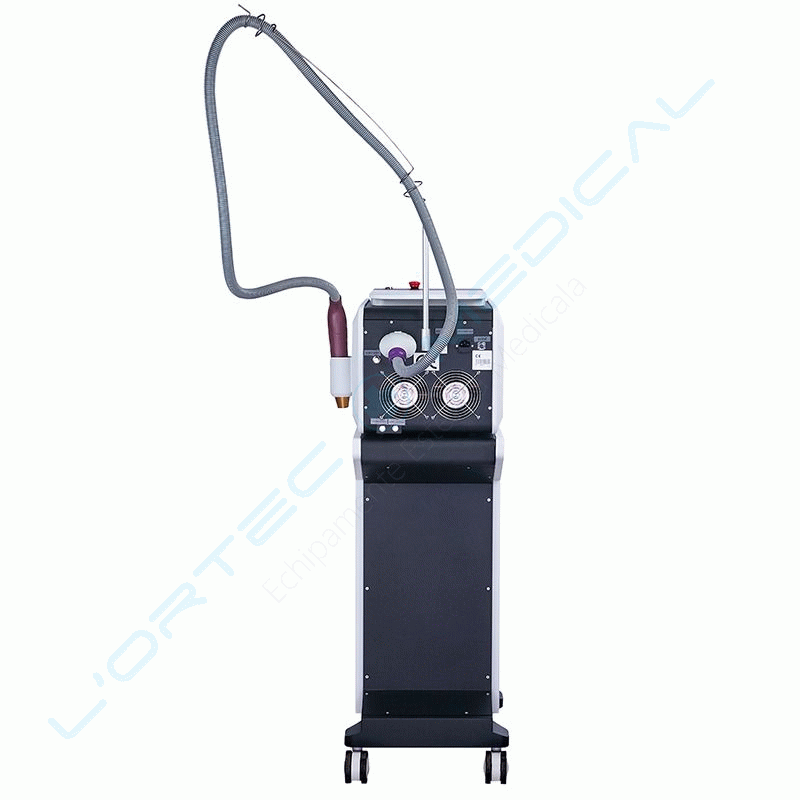

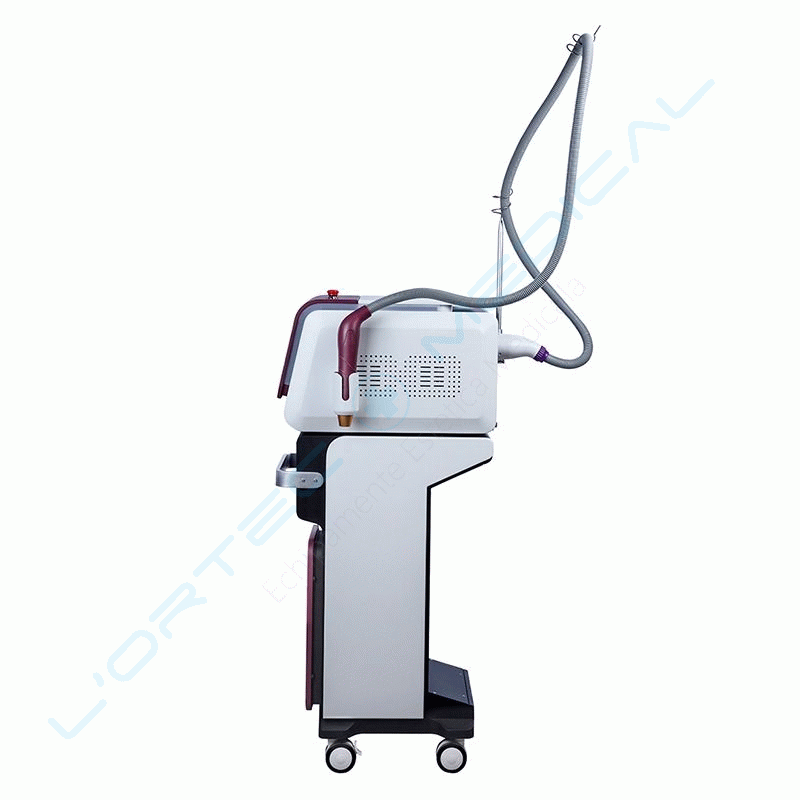

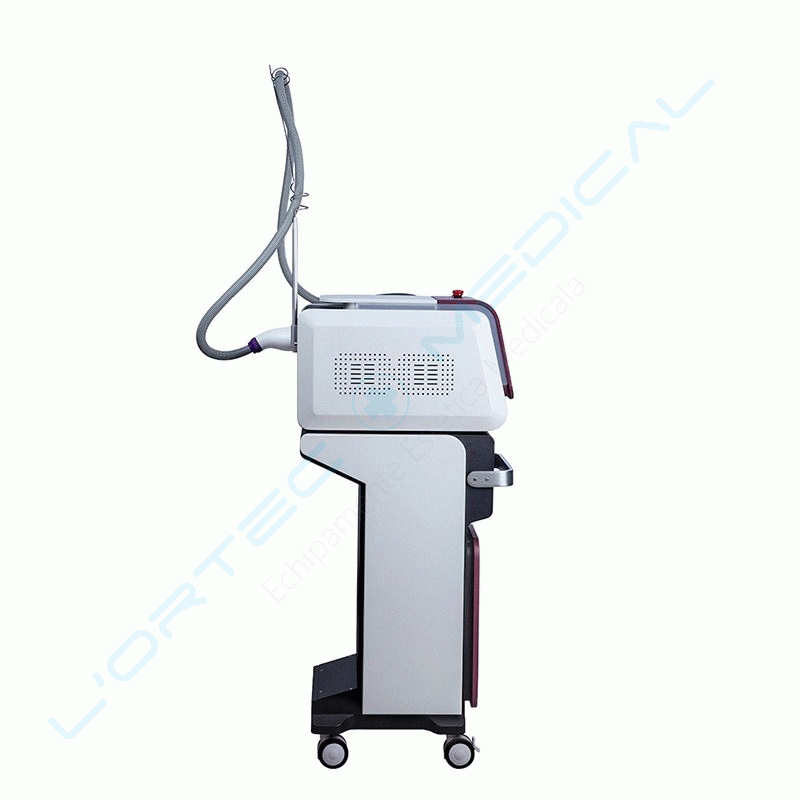

The D-Light Plus equipment from L’Ortec Medical using Nd:YAG Q-Switch technology offers a variety of ways to be used:
· Fading or removing tattoos of different colours
· Removing cosmetic tattoos (eyebrows, lips)
· Removing age spots
· Removing sun spots
The source is an YAG – Yttrium Aluminum Garnet enriched with a small amount of Neodymium (Nd), while Q-Switch (Quality Switch) technology ensures short energy flashes (nanoseconds).
The principle on which D-Light’s Nd:YAG lasers’ functioning is based is selective phototermolysis. This consists of a light pulse with a preselected specific wavelength, transmitted to the target structure in order to remove certain pigments. As a consequence of selective phototermolysis, the optical energy is absorbed by the tattoo ink or, in case of pigmentated lesions, by the skin’s melanin, without affecting surrounding tissue, which remains intact.
Due to its two wavelengths, of 532 nm and 1064 nm, the Nd:YAG laser can remove coloured tattoos as well, besides black ones. By penetrating the skin, the laser’s light interacts with cells containing pigments. These cells heat up until the disintegrate, being removed through sweating or through the lymfatic circuit.
Type L.A.S.E.R .: Picolaser
Wavelength: 532nm - 755nm - 1064nm
Pulse Energy: 500mJ - 500mJ - 800mJ (depending on the chosen wavelength)
Spot diameter: 1 ~ 10mm
Pulse Width: <6ns
Repetition rate: 1-15Hz
Optional end for rejuvenation treatment: 1320nm
Xenon System + Yag Bar: 2 + 1
Yag Bar: 2 x bar
Dimensions Yag Bar: ⱷ7 + ⱷ8
Screen: 8.4 "True Color LCD Touch Screen
Cooling system: air + water
Net Weight: 23.5 kg
